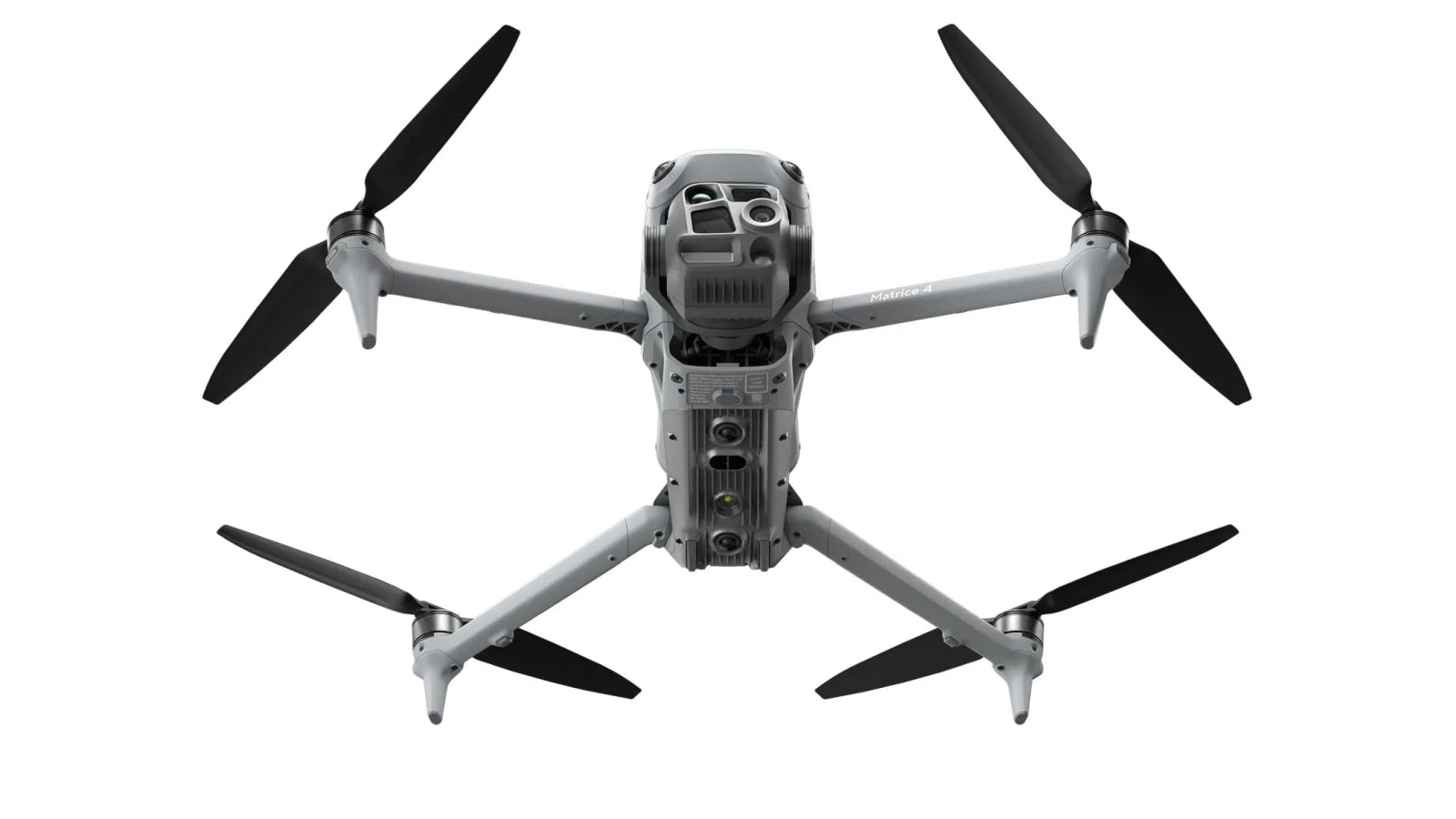

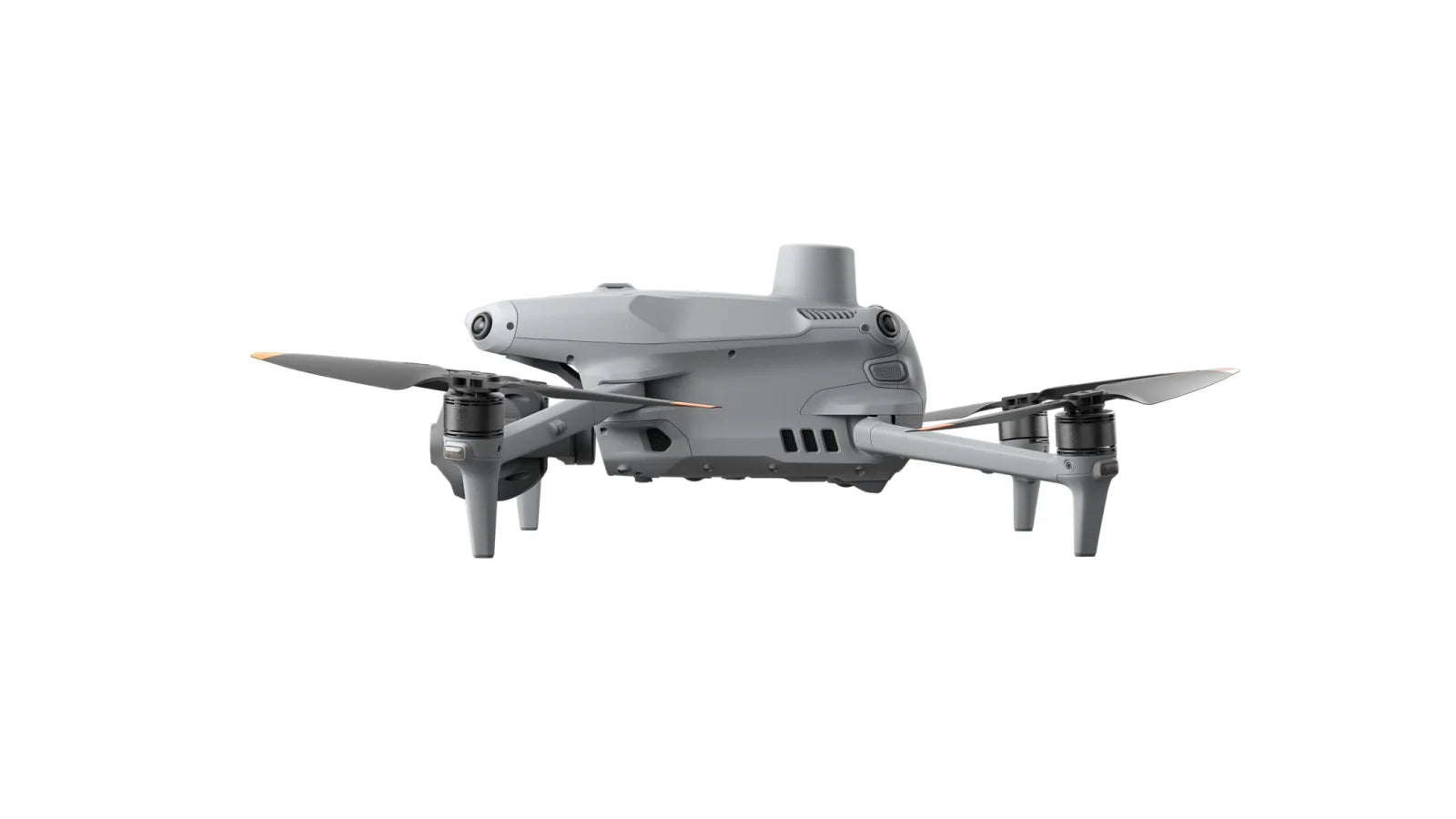

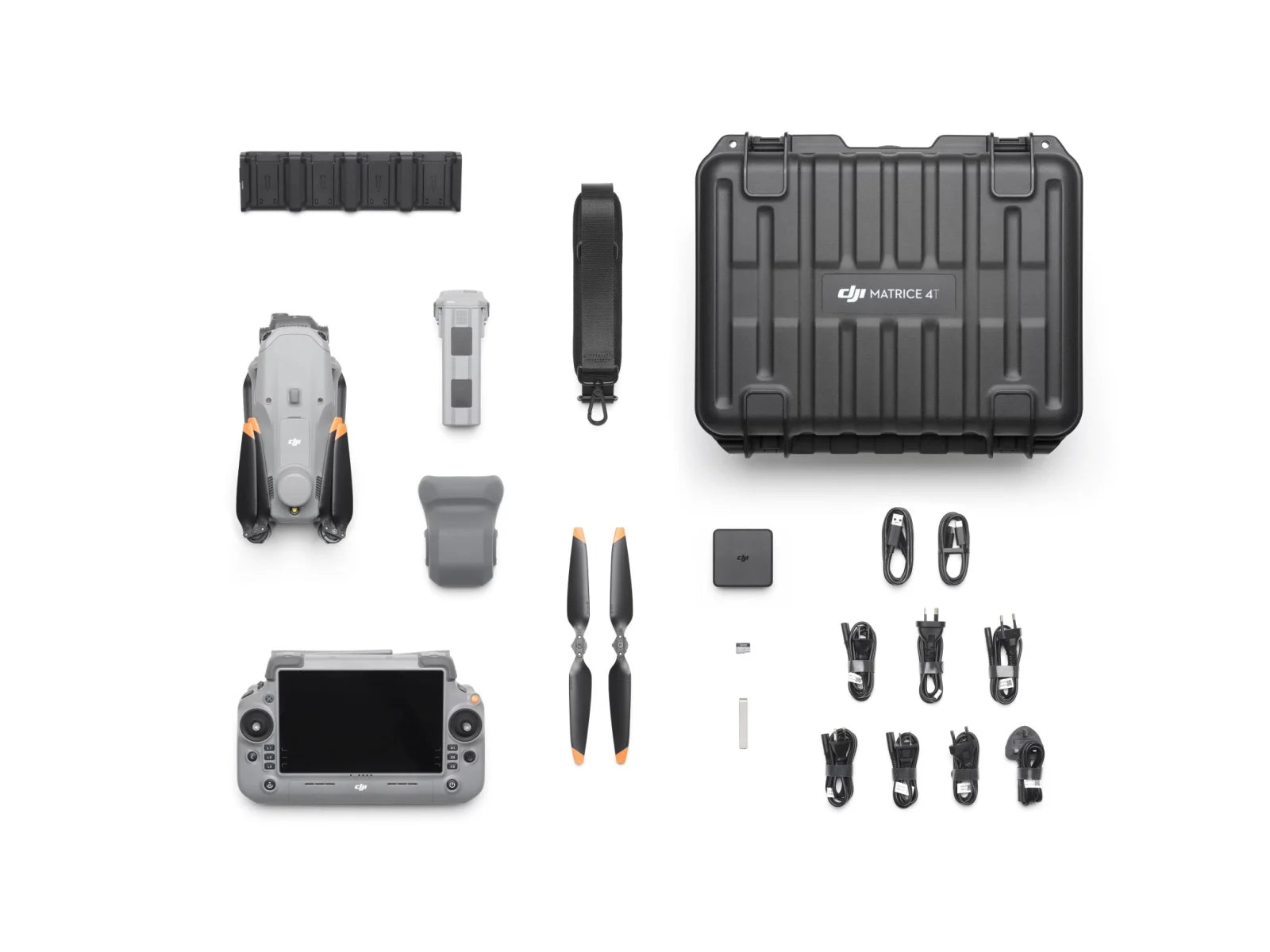

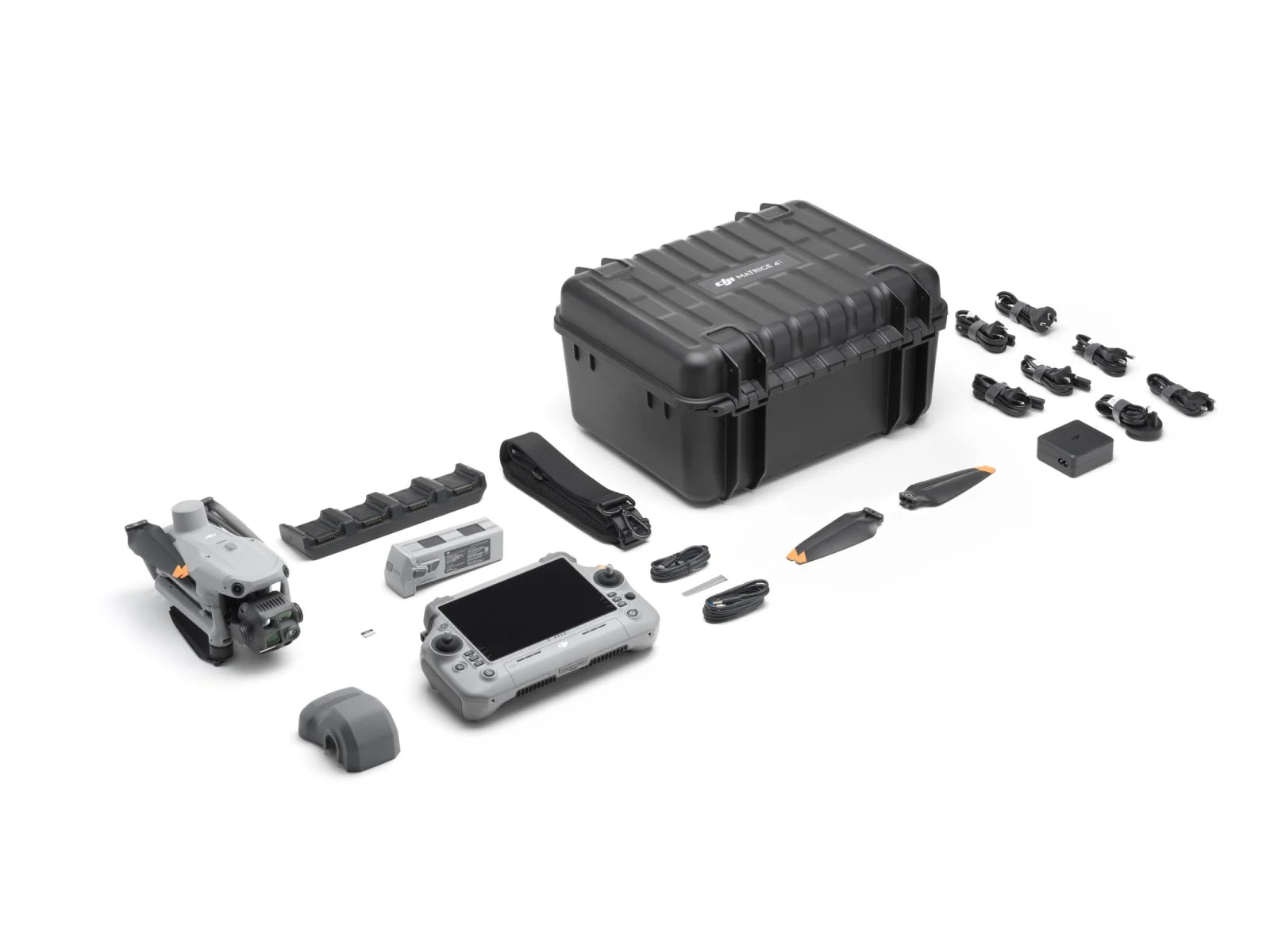

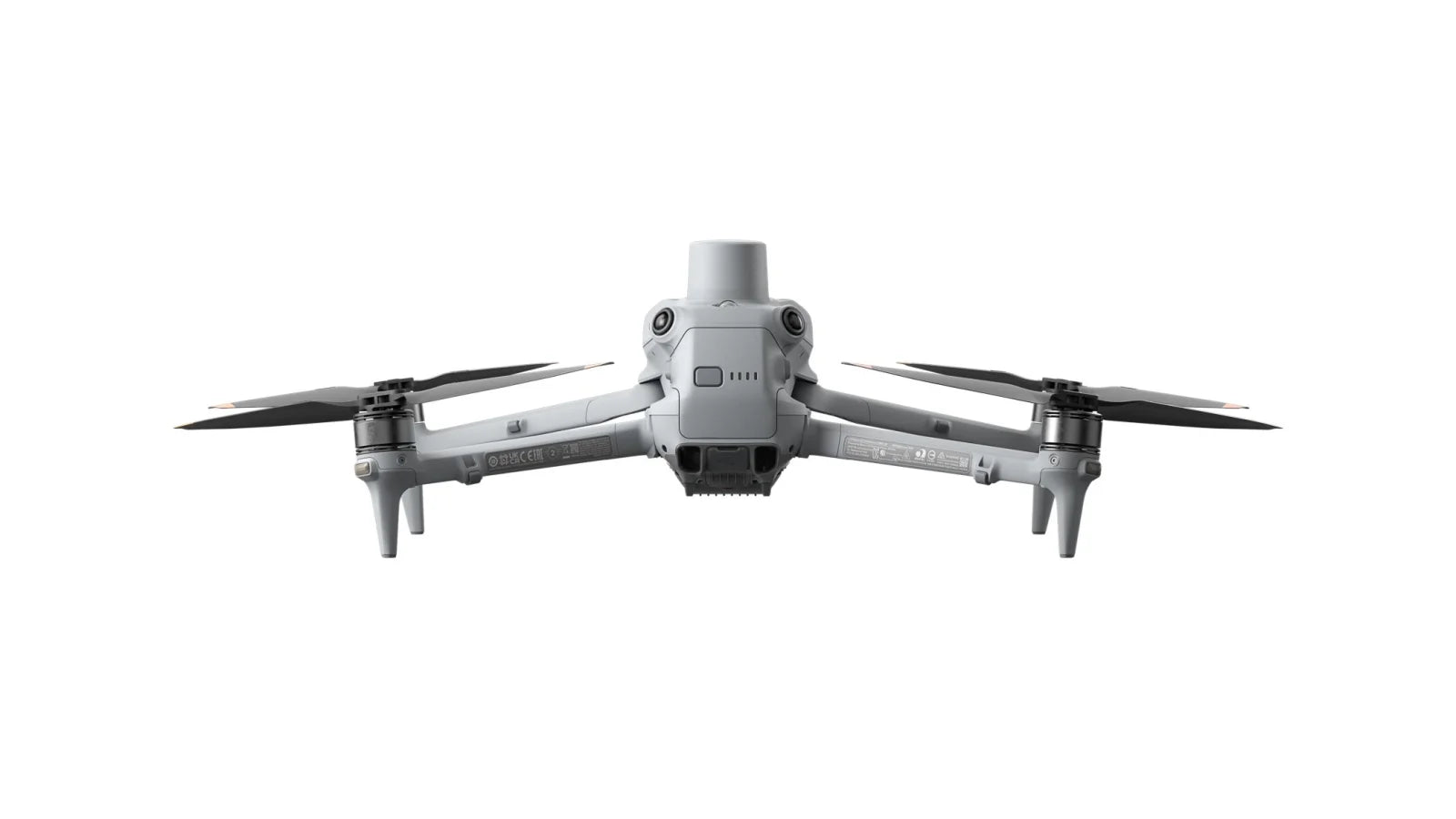

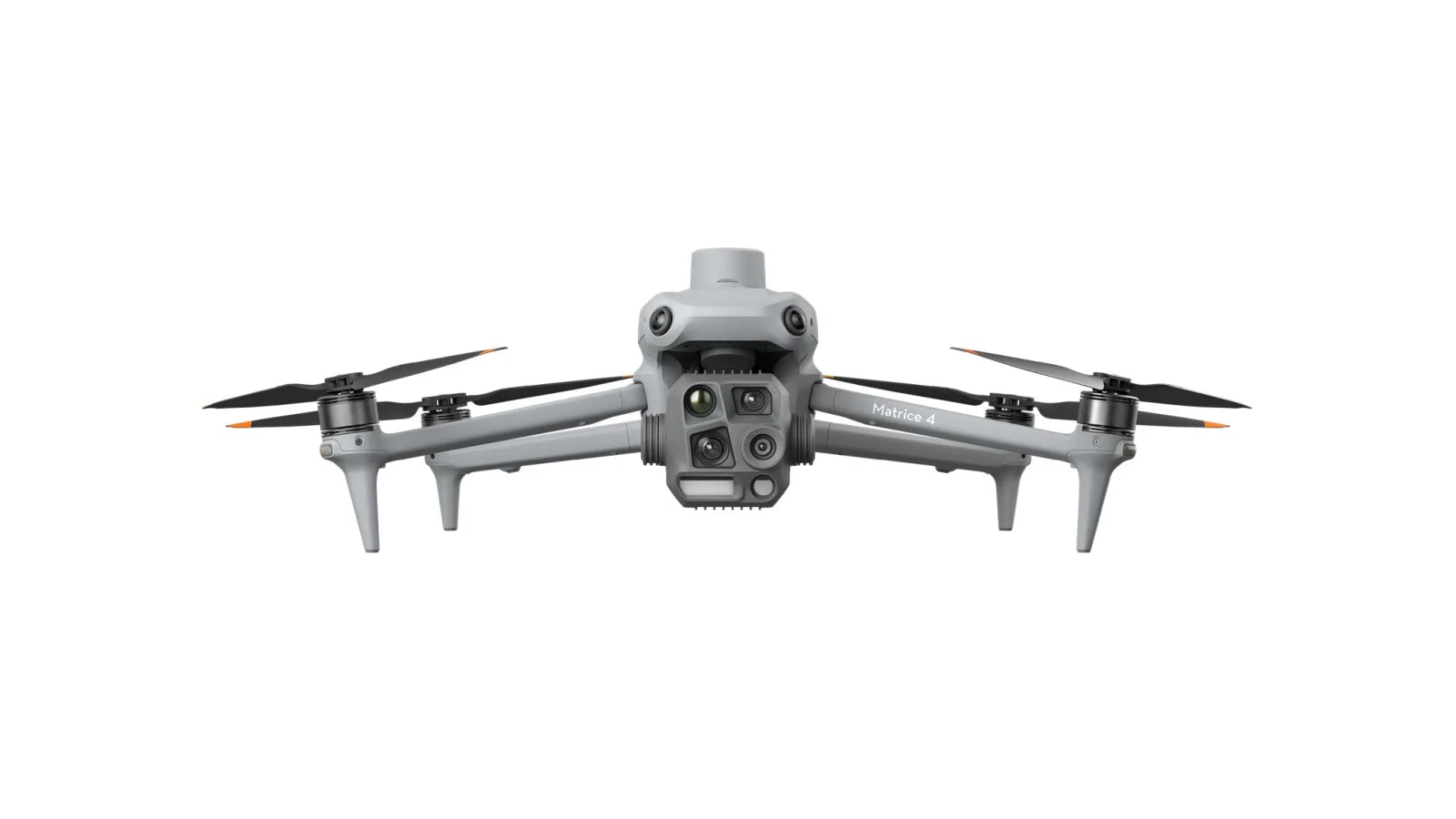

DJI Matrice 4T

DJI Matrice 4T Die DJI Matrice 4 Serie ist eine neue Generation von kleinen intelligenten Multi-Light-Flaggschiff-Drohnen für Unternehmen, die einen neuen Maßstab für intelligente Operationen setzen. neue Maßstäbe für den intelligenten Betrieb. Intelligenter Betrieb KI-Leistung für intelligentere Operationen Das eingebaute KI-Modell kann Fahrzeuge, Schiffe und Objekte während Such- und Rettungseinsätzen oder Routineflügen identifizieren. Es unterstützt auch den Wechsel zu anderen Modellen und ermöglicht so die Erweiterung von KI-Anwendungsszenarien. Laser-Entfernungsmesser, Präzise Messung Der Laserentfernungsmesser ermöglicht präzise Messungen in Echtzeit. Durch einfache Operationen wie Punktmarkierung, Linienzeichnung und Flächenberechnung kann er Aufgaben wie die Markierung von Zielorten zu Sicherheitszwecken oder die Berechnung der Fläche eines Waldbrandes erledigen. Aufzeichnung des Beobachtungsbereichs DJI Pilot 2 unterstützt die Aufzeichnung des Bodenbereichs, der von der Kamera und der mittleren Position des Rahmens gesehen wurde, und kann den betriebenen Bereich auf der Karte anzeigen. Sie eignet sich besonders für die Sicherheitssuche und die Suche in den Bergen. Hervorragend geeignet für schwach beleuchtete Umgebungen Nachtszenen-Modus Unterstützt Vollfarb-Nachtsicht und IR-Cut-Filter, kombiniert mit NIR-Hilfslicht, überwindet leicht die Einschränkungen der Dunkelheit. Intelligente Aufnahme Die Kameras der Matrice 4-Serie verfügen über größere Blenden und intelligente Low-Light-Funktionen, die den Einsatz in der Dämmerung und bei Nacht verbessern. Infrarot-Beleuchtung Die Matrice 4T verfügt über eine neue Hardware für NIR-Beleuchtung, die Beleuchtungsabstände von bis zu 100 Metern ermöglicht. Wärmebildtechnik Die Matrice 4T unterstützt Infrarot-Superauflösung mit einer Bildauflösung von bis zu 1280 × 1024. Omnidirektionale Low-Light Fisheye-Sensorik Die Matrice 4-Serie verfügt über sechs hochauflösende Fisheye-Objektive für schlechte Lichtverhältnisse, die die visuelle Positionierung bei schlechten Lichtverhältnissen und die Fähigkeit zur Hindernisvermeidung verbessern. Kristallklare Sicht 3x Telekamera Das optische 3fach-Teleobjektiv eignet sich hervorragend für Inspektionsaufgaben mit mittlerer Reichweite. Es kann Schrauben und Risse aus einer Entfernung von 10 Metern erkennen und Gerätedaten in Umspannwerken deutlich ablesen. 7x-Telekamera Die 7fach-Telekamera mit einer Auflösung von 48 MP ist in der Lage, unglaubliche Details von Schildern in bis zu 250 Metern Entfernung zu erfassen. Stabilisierung des Vordergrunds Die verbesserte Teleobjektivstabilisierung sorgt für eine stabile und klare Darstellung des Vordergrunds bei Teleaufnahmen mit 10fachem oder mehr Zoom. Elektronisches Dehazing In Umgebungen mit Nebel, Dunst oder hoher Luftfeuchtigkeit kann die elektronische Entschärfung die Bildschärfe verbessern, um verschiedenen Umgebungen und Anforderungen gerecht zu werden. Sicherer Flug, sorgenfreier Betrieb Integrierte Positionsbestimmung, sichere Rückkehr zum Heimatort Die Matrice 4-Serie verfügt über ein integriertes GNSS+Vision Positionierungs- und Navigationssystem. Es ermöglicht die Aktualisierung des Return-to-Home-Punktes durch visuelle Positionierung und ermöglicht in Notfallsituationen einen schnellen Start innerhalb von 15 Sekunden. Auch ohne GNSS-Signale kann das Gerät den Return-to-Home-Prozess abschließen. Intelligente Begleitung, ungehinderter Flug Wenn die Fernsteuerung mit dem Internet verbunden ist, lädt sie automatisch Details zu Geländehindernissen und detaillierte Offline-Karten vor. Die Standardkonfiguration umfasst eine 5-Richtungs-Sichthilfe sowie eine Abwärtssicht, die eine umfassende Sicht für mehr Sicherheit bietet. Erreichen Sie neue Höhen bei der Bildübertragung Das Bildübertragungssystem der O4 Enterprise umfasst ein 8-Antennen-System mit adaptiver Auswahl auf jeder Drohne. Gepaart einer in die Fernsteuerung integrierten Hochleistungs-Empfangsantenne erreicht dieses System eine Übertragungsreichweite von über 20 Kilometer. Außerdem beträgt die Download-Bandbreite bis zu 20 MB/s. Mit dem optionalen DJI Cellular Dongle 2, der die 4G-Bildübertragung in Verbindung mit den Antennen des Fluggeräts nutzt, wird die Signalstabilität noch weiter verbessert. Zubehör-Upgrades Kardanisch nachgeführter Scheinwerfer Unterstützt zwei Modi: Dauerlicht und Stroboskop und beleuchtet Objekte sogar aus einer Entfernung von 100 Metern. Er kann auch den Bewegungen der Kamera folgen und im Weitwinkelmodus einen größeren Bereich beleuchten. Echtzeit-Sprachausgabe Er erreicht eine Lautstärke von 114 Dezibel bei einer Entfernung von 1 Meter und hat eine Reichweite von bis zu 300 Metern. Er unterstützt aufgezeichnete Nachrichten, Medienimporte und die Umwandlung von Text in Sprache. Der Scheinwerfer und der Lautsprecher können unabhängig voneinander oder in Kombination verwendet werden, um den Anforderungen mehrerer Einsatzszenarien gerecht zu werden. DJI RC Plus 2 Enterprise Ausgestattet mit einem neuen, sehr hellen Bildschirm, der auch bei direkter Sonneneinstrahlung gut sichtbar bleibt. IP54 und -20°C bis 50°C. Unterstützt das O4 Enterprise Bildübertragungssystem. Unterstützt auch SDR- und 4G-Hybrid-Übertragungslösungen Key Specs Drohne Gewicht ：1219 g（mit normalen Propellern） Zusammengeklappt：Länge 260,59 mm, Breite 113,66 mm, Höhe 138,23 mm Ausgeklappt：Länge 307 mm, Breite 387,5 mm, Höhe 149,43 mm Maximale Nutzlast：200g Flugzeit：49 Minuten Maximale Abflughöhe：6000 m Maximaler Windwiderstand：12 m/s Max. horizontale Geschwindigkeit：21m/s Nutzlast Weitwinkel: 1/1.3 CMOS, 48 MP, f/1.7, äquivalente Brennweite：24 mm 3× Zoom: 1/1.3 CMOS, 48MP, f/2.8, äquivalente Brennweite：70 mm 7× Zoom: 1/1.5 CMOS, 48MP, f/2.8, Äquivalente Brennweite：168 mm Infrarot-Wärmebildkamera: Auflösung 640 × 512, f/1.0, äquivalente Brennweite：53 mm， ungekühltes Vanadiumoxid, Unterstützung für Super-Resolution-Modus NIR-Zusatzlicht: FOV: 6°， Beleuchtungsabstand：100 m Laser-Entfernungsmesser: Messbereich: 1800 m (1 Hz); Schrägeinfallsbereich (1:5 Schräge Entfernung): 600 m (1 Hz) Blindzone: 1 m; Entfernungsgenauigkeit: 0,2 + 0,005 × D (m) Lieferumfang: 1x Matrice 4T 1x Matrice 4 Serie - Akku 1x RC Plus 2 Enterprise 1x 100W USB-C Netzteil 1x Matrice 4 Serie - Ladestation 1x MicroSD-Karte 1x Matrice 4T Serie - Gimbal-Schutz 1x Mobilfunk-Dongle 2 Hebeleisen 3x Matrice 4 Serie - Propellerpaar 1x AC-Kabel für 100W Netzteil 1x USB-C auf USB-C Datenkabel 1x USB-A auf USB-C Datenkabel 1x Matrice 4 Serie - Transportkoffer 1x Matrice 4 Serie - Transportkoffer-Gurt 3-monatige Testlizenz für DJI Terra Software enthalten! Technische Daten: DJI Matrice 4T General Aircraft Takeoff Weight (with propellers) 1219 g* * The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. Takeoff Weight (with Low-Noise propellers) 1229 g* * The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. Max Takeoff Weight Standard Propellers: 1420 g Low-Noise Propellers: 1430 g Dimensions Folded: 260.6×113.7×138.4 mm (L×W×H) Unfolded: 307.0×387.5×149.5 mm (L×W×H) Maximum dimensions excluding propellers. Max Payload 200 g Propeller Size 10.8 in Diagonal Wheelbase 438.8 mm Max Ascent Speed 10 m/s Maximum Ascent Speed With Accessories 6 m/s Max Descent Speed 8 m/s Max Descent Speed With Accessories 6 m/s Max Horizontal Speed (at sea level, no wind) 21 m/s 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways* * No faster than 19 m/s with Sport mode in EU regions. Max Altitude 6000 m Max Operating Altitude with Payload 4000 m Max Flight Time (without wind) 49 min (standard propellers) 46 min (low-noise propellers) Measured with the aircraft flying at approximately 9 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app. Max Hover Time (without wind) 42 min (standard propellers) 39 min (low-noise propellers) Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%. Max Flight Distance (no wind) 35 km (standard propellers) 32 km (low-noise propellers) Measured with the aircraft flying at approximately 14 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app. Max Wind Speed Resistance 12 m/s* * Max wind speed resistance during takeoff and landing. Max Pitch Angle 35° Operating Temperature -10? to 40? (14°F to 104°F) GNSS GPS + Galileo + BeiDou + GLONASS* * GLONASS is supported only when the RTK module is enabled. Hovering Accuracy Range (windless or breezy) ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) RTK GNSS Accuracy RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical) Internal Storage N/A Ports E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported) E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices. Accessories or expansion modules must be installed before powering on. Propeller Model 1157F (standard propellers) 1154F (low noise propeller) Beacon Built into the aircraft Camera Image Sensor DJI Matrice 4T Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP DJI Matrice 4E Wide: 4/3-inch CMOS Effective Pixels: 20 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP Lens DJI Matrice 4T FOV: 82° Equivalent Focal Length: 24 mm Aperture: f/1.7 Focus: 1 m to ∞ DJI Matrice 4E FOV: 84° Equivalent Focal Length: 24 mm Aperture: f/2.8-f/11 Focus: 1 m to ∞ Medium Tele Camera FOV: 35° Equivalent Focal Length: 70 mm Aperture: f/2.8 Focus: 3 m to ∞ Tele camera FOV: 15° Equivalent Focal Length: 168 mm Aperture: f/2.8 Focus: 3 m to ∞ ISO Range Normal Mode: ISO 100 to ISO 25600 Night Scene Mode: Matrice 4T: Wide Camera: ISO 100 to ISO 409600 Midum Tele Camera: ISO 100 to ISO 409600 Tele Camera: ISO 100 to ISO 819200 Matrice 4E: Wide Camera: ISO 100 to ISO 204800 Midum Tele Camera: ISO 100 to ISO 409600 Tele Camera: ISO 100 to ISO 409600 Shutter Speed DJI Matrice 4T 2-1/8000 s DJI Matrice 4E Wide: Electronic Shutter: 2-1/8000 s Mechanical Shutter: 2-1/2000 s Medium Telephoto: 2-1/8000 s Telephoto: 2-1/8000 s Max Photo Size DJI Matrice 4T Wide: 8064 × 6048 Medium Telephoto: 8064 × 6048 Telephoto: 8192 × 6144 DJI Matrice 4E Wide: 5280 × 3956 Medium Telephoto: 8064 × 6048 Telephoto: 8192 × 6144 Minimum Photo Interval DJI Matrice 4T: 0.7 s DJI Matrice 4E: 0.5 s Still Photography Modes DJI Matrice 4T: Wide: Single: 12 MP/48 MP Interval: 12 MP/48 MP JPEG:0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting:12MP Panorama: 12 MP (raw image);100 MP (stitched image) Medium Tele Camera: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG:0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting: 12MP Telephoto: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG:0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting:12MP DJI Matrice 4E: Single: 20 MP Interval: 20 MP JPEG:0.5/0.7/1/2/3/5/7/10/15/20/30/60 s JPEG + RAW:2/3/5/7/10/15/20/30/60 s Smart Shooting: 20 MP Panorama: 20 MP (raw image);100 MP (stitched image) Medium Tele Camera: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting:12 MP Telephoto: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting: 12 MP Video Codec and Resolution Video Coding Format: H.264/H.265 Coding Strategy: CBR, VBR Resolution: 4K: 3840 × 2160@30fps FHD: 1920 × 1080@30fps Max Video Bitrate H.264: 60Mbps H.265: 40Mbps Supported File System exFAT Photo Format DJI Matrice 4T: JPEG DJI Matrice 4E: Wide: JPEG/DNG (RAW) Medium Tele Camera: JPEG Telephoto: JPEG Video Format MP4 (MPEG-4 AVC/H.264) Digital Zoom Telephoto: 16x (112x hybrid zoom) NIR Auxiliary Light Infrared Illumination DJI Matrice 4T: FOV: 5.7°±0.3° Laser Module Laser Rangefinding Measurement Range: 1800 m (1 Hz) @20% reflectivity target* Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters) * Performance degradation may occur in rainy or foggy conditions Infrared Thermal Camera Thermal Imager DJI Matrice 4T: uncooled vanadium oxide (VOx) DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage. Resolution DJI Matrice 4T: 640 × 512 Pixel Pitch DJI Matrice 4T: 12 μm Frame Rate DJI Matrice 4T: 30 Hz Lens DJI Matrice 4T DFOV: 45°±0.3° DJI Matrice 4T equivalent focal length: 53 mm DJI Matrice 4T Aperture: f/1.0 DJI Matrice 4T Focus: 5 m to ∞ Sensitivity DJI Matrice 4T: ≤50mk@F1.0 Temperature Measurement Method DJI Matrice 4T: Spot Meter, Area Measurement Temperature Measurement Range DJI Matrice 4T: High Gain Mode: -20? to 150? (-4°F to 302°F) () Low Gain Mode: 0? to 550? (32°F to 1022°F) Palette DJI Matrice 4T: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 Photo Format DJI Matrice 4T:JPEG (8bit)? R-JPEG (16bit) Video Resolution DJI Matrice 4T: 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated) Other conditions: 640 × 512@30fps Video Bitrate DJI Matrice 4T: 6.5Mbps (H.264 640 × 512@30fps) 5Mbps (H.265 640 × 512@30fps) 12Mbps (H.264 1280 × 1024@30fps) 8Mbps (H.265 1280 × 1024@30fps) Video Format DJI Matrice 4T:MP4 Still Photography Modes DJI Matrice 4T: Single: 1280 × 1024/640 × 512 Interval: 1280 × 1024/640 × 512 JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Photo Resolution DJI Matrice 4T: Infrared: 1280 × 1024 (Super Resolution on) 640 × 512 (Super Resolution off) Digital Zoom DJI Matrice 4T: 28x Infrared Wavelength DJI Matrice 4T: 8um to 14um Infrared Temperature Measurement Accuracy DJI Matrice 4T: High Gain: ±2? or ±2%, whichever is greater DJI Matrice 4T: Low Gain: ±5? or ±3%, whichever is greater Gimbal Stabilization System DJI Matrice 4T:3-axis (tilt, roll, pan) DJI Matrice 4E:3-axis (tilt, roll, pan) Mechanical Range DJI Matrice 4T Gimbal Mechanical Limits: Tilt: -140° to 113° Roll: -52° to 52° Pan: -65° to 65° Soft Limits: Tilt: -90° to 35° Roll: -47° to 47° Pan: -60° to 60° DJI Matrice 4E Gimbal Mechanical Limits: Tilt: -140° to 50° Roll: -52° to 52° Pan: -65° to 65° Soft Limits: Tilt: -90° to 35° Roll: -47° to 47° Pan: -60° to 60° Controllable Rotation Range DJI Matrice 4T DJI Matrice 4T Pan: ±-90° to 35° Pan: Not controllable DJI Matrice 4E Tilt: -90° to 35° Pan: Not controllable Max Control Speed (tilt) 100°/s Angular Vibration Range ±0.007° Yaw Axis Manual operation is uncontrollable The MSDK interface program is controllable. Ingress Protection Rating No Standard Protection Level Operating Temperature Standard: -10°C to 40°C (14°F to 104°F) Sensing Sensing Type Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft. Forward Binocular Measurement Range: 0.4-22.5 m Measurement Range: 0.4-200 m Obstacle Avoidance Speed: Flight Speed ≤21 m/s FOV: 90° (horizontal), 135° (vertical) Backward Measurement Range: 0.4-22.5 m Measurement Range: 0.4-200 m Obstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical) Lateral Measurement Range: 0.5-32 m Measurement Range: 0.5-200 m Obstacle Avoidance Speed: Flight Speed ≤21 m/s FOV: 90° (horizontal), 90° (vertical) Downward Measurement Range: 0.3-18.8 m Obstacle Avoidance Speed: Flight Speed ≤10 m/s The FOV to the front and rear is 160° and 160° to the right and left. Operating Environment Forward, Backward, Left, Right, and Upward: Delicate texture on the surface, adequate light. Downward: The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.). * Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene. Video Transmission Video Transmission System O4 Enterprise Live View Quality Remote Controller: 1080p/30fps Operating Frequency 2.400-2.4835 GHz 2.400-2.4835 GHz 5.725-5.850 GHz 5.150-5.250 GHz (CE) Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. Transmitter Power (EIRP) 2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE) 5.15-5.25: < 23 dBm (FCC/CE) Max Transmission Distance (unobstructed, free of interference) 25 km (FCC) 12 km (CE) 12 km (SRRC) 12 km (MIC) Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app. Max Transmission Distance (with interference) Strong Interference - City Centers (approx. 1.5-5 km) Medium Interference - Suburban Areas (approx. 5-15 km) Micro interference:Suburbs/Seasides (approx. 15-25 km) * Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. Max Download Speed 20 MB/s The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference. Latency (depending on environmental conditions and mobile device) 130 ms Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens. Antenna 8 antennas, 2T4R Others Cellular Dongle Compartment Memory Card Supported SD Cards U3/Class10/V30 or above is required, or use a memory card from the recommended list. Recommended microSD Cards Lexar 1066x 64GB U3 A2 V30 microSDXC Lexar 1066x 128GB U3 A2 V30 microSDXC Lexar 1066x 256GB U3 A2 V30 microSDXC Lexar 1066x 512GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC Intelligent Flight Battery Capacity 6741 mAh Standard Voltage 14.76 V Max Charging Voltage 17.0 V Cell Type Li-ion 4S Energy 99.5 Wh Weight 401 g Recharging Temperature 5°C to 40°C (41°F to 104°F) Discharge Rate 4C Max Charging Power 1.8C Supports low-temperature charging Not supported Cycle Count 200 Power Adapter (100W) Input 100-240 V (AC), 50-60 Hz, 2.5 A Output Max. 100 W (total) When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load. Rated Power 100 W Charging Hub Input USB-C:5-20 V, max 5 A Output Battery Interface: 11.2 V to 17 V Rated Power 100 W Recharging Type 4 batteries charging in sequence Support Standard Mode (100% SOC) and Standby Mode (90% SOC) Compatible Battery DJI Matrice 4E/T Series Intelligent Flight Battery Charging Temperature 5° to 40° C (41°F to 104°F) DJI RC Plus 2 Enterprise Video Transmission System O4 Enterprise Max Transmission Distance (unobstructed, free of interference) 25 km (FCC) 12 km (CE) 12 km (SRRC) 12 km (MIC) Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app. Operating Band of Image Transmission 2.4000-2.4835 GHz 5.725 - 5.850 GHz 5.1GHz (receive only) Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. Antenna 2T4R, built-in multi-beam high-gain antenna Video Transmission Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC) 4G Transmission DJI Cellular Dongle 2 Wi-Fi Protocol Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS) Wi-Fi Operating Band 2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz 5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor. Wi-Fi Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/ MIC) 5.1 GHz: <23 dBm (FCC) 5.8 GHz <23 dBm (FCC/SRRC), <14 dBm (CE) Bluetooth Protocol Bluetooth 5.2 Bluetooth Operating Frequency 2.400-2.4835 GHz Bluetooth Transmitter Power (EIRP) <10 dBm Screen Resolution 1920 × 1200 Screen Size 7.02 inches Screen Frame Rate 60 fps Brightness 1400 nits Touchscreen Control 10 Points Multi-touch Built-in Battery 2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh External Battery Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh Recharging Type Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger. Storage Capacity ROM 128 G + expandable storage via microSD card Charging Time 2 hrs for internal battery or internal and external battery. When remote controller is powered off and using a standard DJI charger. Internal Battery Runtime 3.8 hrs External Battery Runtime 3.2 hrs Output Port HDMI 1.4 Indicators Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness. Speaker Supports buzzer Audio Array MIC Operating Temperature -20° to 50° C (D228 (-4°F to 122°F) Storage Temperature Within one month: -30° to 45° C (-22°F to 113°F) One to three months: -30° to 35° C (-22°F to 95°F) Three months to one year: -30° to 30° C (-22°F to 86°F) Recharging Temperature 5° to 40° C (41°F to 104°F) Supported Aircraft Models Support for Matrice 4T/4E GNSS GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh. Dimensions 268×163×94.5 mm (L×W×H) Width including external antenna folded, thickness including handle and controller sticks. Weight 1.15 kg (without external battery) Model TKPL 2 System Version Android 11 External Interfaces HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface. Accessory Optional strap/waist support AL1 Spotlight Weight 99 g (including bracket) Approx. 91 g (excluding bracket) Dimensions 95×164×30 mm (L×W×H,including bracket) 79×164×28 mm (L×W×H, without bracket) Max. Power 32 W Illuminance 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C. Effective Illumination Angle 23° (10% relative illumination) Effective Illumination Area 1,300 square meters @ 100 meters (10% relative illumination, Normal Mode) 2,200 square meters @ 100 meters (10% central illuminance, Wide fov Mode) Operating Mode Supports always-on and strobe modes. Gimbal Structural Design Range Tilt: -140° to 50° Controllable Range: Tilt: -90° to 35° Max Control Speed (tilt) 120°/s Gimbal Alignment Accuracy ±0.1° Operating Temperature -20°C to 50°C (-4°F to 122°F) Mounting Quick-release hand-tightened screws AS1 Speaker Weight 92.5 g (including bracket) Approx. 90 g (excluding bracket) Dimensions 73×70×52 mm (L×W×H,including bracket) 73×70×47 mm (L×W×H, without bracket) Max. Power 15 W Max. Volume At 1 meter, it can reach 114 decibels (114dB@1m). Data measured in a laboratory environment at 25?. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use. Effective Broadcast Distance 300 m Data measured in a laboratory environment at 25?. Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use. Broadcast Mode Real-time broadcasting (supports echo suppression*), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech** * Need to upgrade to the latest firmware. ** Currently only supports Chinese and English. Operating Temperature -20°C to 50°C (-4°F to 122°F) Mounting Quick-release hand-tightened screws
